| Manufacturer: | AMD |
| Product Type: | FPGA – Configuration Memory |
| Memory Type: | EEPROM |
| Memory Size: | 4 Mbit |
| Maximum Operating Frequency: | 50 MHz |
| Operating Supply Voltage: | 3.3 V |
| Supply Voltage – Max: | 3.6 V |
| Supply Voltage – Min: | 3 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Mounting Style: | SMD/SMT |
| Package / Case: | TSSOP-20 |
| Operating Supply Current: | 10 mA |

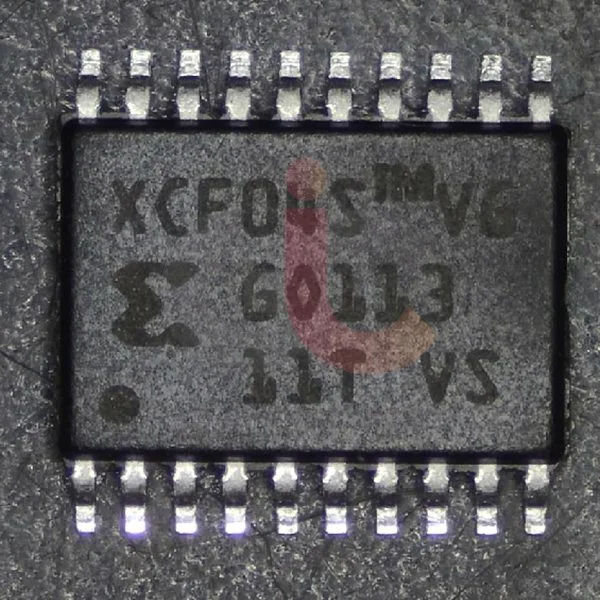

The XCF04SVOG20C is a serial Flash PROM device from Xilinx, designed for storing configuration data for Xilinx FPGAs. This device is part of the XCFxxS series, which provides non-volatile memory to program Xilinx Field Programmable Gate Arrays (FPGAs) during power-up.
Applications:
– FPGA Configuration: Primarily used to store the configuration bitstream for Xilinx FPGAs. During power-up, the FPGA reads the bitstream from the Flash PROM to configure itself.
– Embedded Systems: Suitable for use in systems where FPGA configuration data needs to be stored and reliably retrieved.
– Industrial Control: Used in industrial equipment where FPGAs are utilized for control, monitoring, or processing tasks.
