| Manufacturer | STMicroelectronics |
| Manufacturer Standard Lead Time | 35 Weeks |
| Description | IC OFFLINE SWITCH FLYBACK 7DIP |
| Series | VIPer™ plus |
| Package | Tube |
| Product Status | Active |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Base Product Number | VIPER27 |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage – Breakdown | 800V |
| Topology | Flyback |
| Voltage – Start Up | 14 V |
| Voltage – Supply (Vcc/Vdd) | 8.5V ~ 23.5V |
| Duty Cycle | 80% |
| Frequency – Switching | 60kHz |
| Power (Watts) | 20 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |

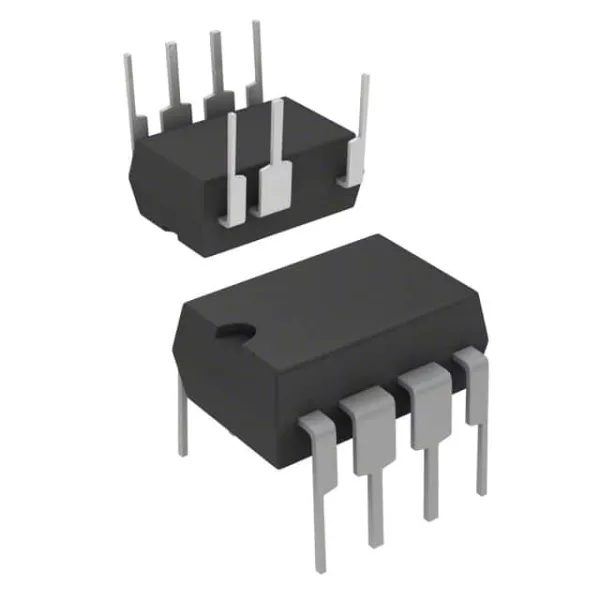

| Package / Case | 8-DIP (0.300″, 7.62mm), 7 Leads |
| Supplier Device Package | 7-DIP |
| Mounting Type | Through Hole |
- The VIPER27LN typically includes various protection features such as overvoltage protection, overcurrent protection, and thermal shutdown. These safeguards enhance the reliability and safety of the power supply.
- This high-voltage converter is commonly used in power electronic circuits, switch-mode power supplies, and other applications where efficient power conversion is critical.
- The VIPER27LN is engineered to provide high efficiency and precise regulation of the output voltage, meeting the stringent requirements of modern electronic devices.
