| Manufacturer | Texas Instruments |
| Manufacturer Standard Lead Time | 6 Weeks |
| Package | Tape & Reel (TR), Cut Tape (CT) |
| Description | IC SWITCH SPDT X 1 9OHM SC70-6 |
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 9Ohm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage – Supply, Single (V+) | 2.25V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 9ns, 7ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 12.5pC |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current – Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | TS5A9411 |

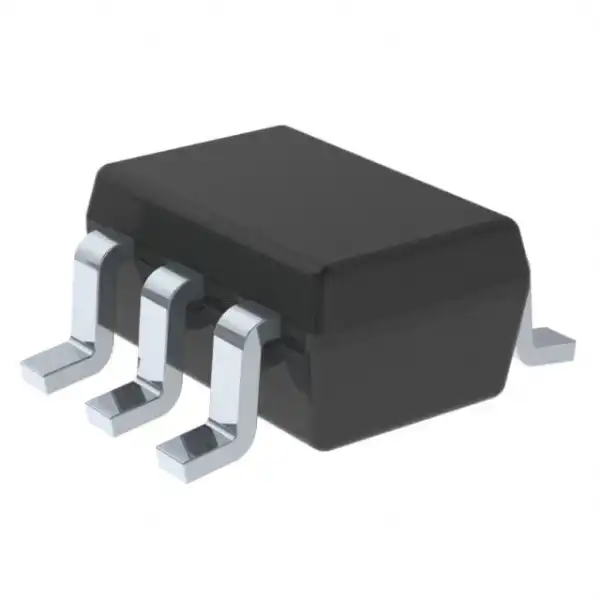

Texas Instruments TS5A9411DCKR is a 1-circuit integrated circuit switch designed with a 2:1 configuration. The switch has a resistance of 9 ohms and is available in a SC-70-6 package.
