| Manufacturer | STMicroelectronics |
| Manufacturer Standard Lead Time | 52 Weeks |

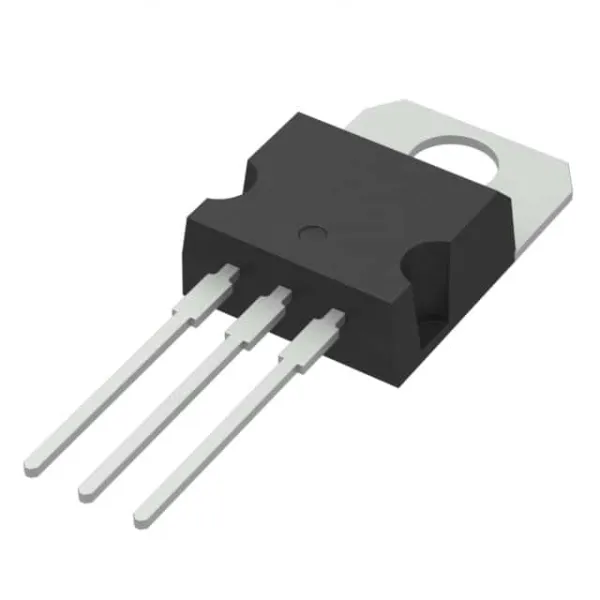

| Description | MOSFET N-CH 100V 180A TO220 |
| Series | DeepGATE™, STripFET™ VII |
| Package | Tube |
| Product Status | Active |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Base Product Number | STP240 |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Mounting Type | Through Hole |
- With a voltage rating of 100V, this MOSFET is suitable for applications where a higher voltage capability is required.
- The on-state resistance of the STP240N10F7 is specified as 2.5 milliohms (mΩ). A lower on-state resistance indicates better conduction efficiency and reduced power losses during operation.
- The MOSFET has a continuous drain current rating of 180A. This parameter indicates the maximum current the MOSFET can handle under continuous operation.
- The STripFET VII series from STMicroelectronics is known for advanced MOSFET technology, offering improved performance and efficiency. It is designed to meet the demands of modern power management applications.
- The STP240N10F7 is suitable for a wide range of power electronics applications.
