| Manufacturer | STMicroelectronics |
| Description | IC MCU 32BIT 1MB FLASH 100LQFP |
| Series | STM32F4 |
| Package | Tray |
| Product Status | Active |
| Number of I/O | 82 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |

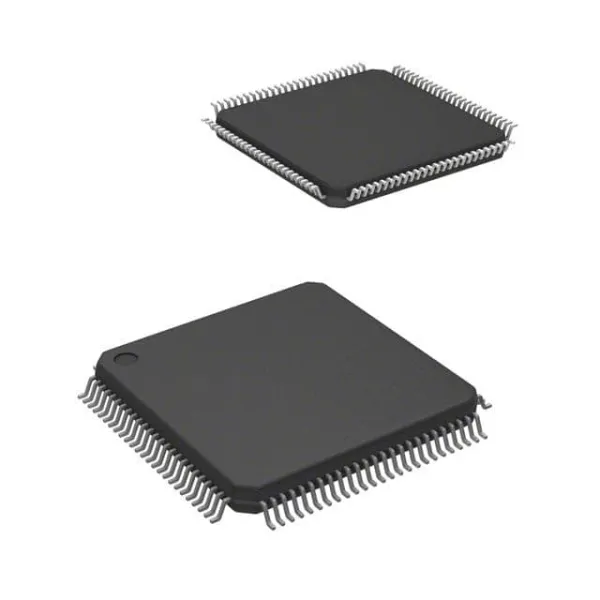

| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
| Base Product Number | STM32F407 |
| Manufacturer Standard Lead Time | 22 Weeks |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 168MHz |
| Connectivity | CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 192K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
- With a generous 1024 KB (1 MB) of flash memory, the STM32F407VGT6 provides ample storage for program code and firmware.
- Operating at a clock speed of 168 MHz, the STM32F407VGT6 delivers rapid processing capabilities. The high clock frequency enables swift execution of instructions, making it suitable for applications demanding real-time responsiveness.
- Featuring 192 KB of Static Random-Access Memory (SRAM), this microcontroller provides a sizable working memory for data storage and manipulation. Sufficient SRAM is crucial for handling variables, buffers, and temporary data during program execution.
- The STM32F407VGT6 includes advanced control peripherals such as timers, PWM controllers, and motor control features. These capabilities make it well-suited for applications in motor control, power management, and other precision control systems.
- The combination of computational power, memory resources, and connectivity options positions the STM32F407VGT6 for deployment in diverse domains, including industrial automation, consumer electronics, automotive systems, and more.
