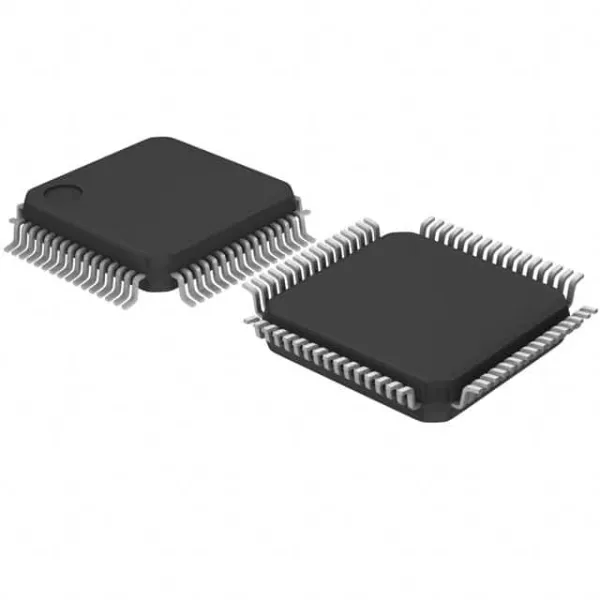

| Manufacturer | STMicroelectronics |
| Description | IC MCU 32BIT 128KB FLASH 64LQFP |
| Series | STM32F1 |
| Package | Tray |
| Product Status | Active |
| Number of I/O | 51 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 64-LQFP |
| Base Product Number | STM32F103 |
| Manufacturer Standard Lead Time | 12 Weeks |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 20K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
- The 32-bit architecture of the Cortex-M3 core enhances the MCU’s ability to process data and execute instructions efficiently. This architecture is advantageous for applications that require high computational accuracy and speed.
- The STM32F103RBT6 integrates a variety of peripherals, including timers, communication interfaces (UART, SPI, I2C), GPIOs, and analog components. These peripherals enhance the MCU’s connectivity and functionality for a wide range of applications.
- The STM32F103RBT6 is well-suited for a broad spectrum of applications, including industrial automation, motor control, medical devices, and more. Its combination of performance, memory, and peripheral features makes it adaptable to various embedded systems requirements.
