| Manufacturer | Semtech Corporation |
| Series | RailClamp® |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Description | TVS DIODE 2.5VWM 20VC SLP3020N10 |
| Product Status | Active |
| Manufacturer Standard Lead Time | 22 Weeks |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 8 |
| Voltage – Reverse Standoff (Typ) | 2.5V (Max) |
| Voltage – Breakdown (Min) | 2.7V |
| Voltage – Clamping (Max) @ Ipp | 20V |
| Current – Peak Pulse (10/1000µs) | 40A (8/20µs) |
| Power – Peak Pulse | 1000W (1kW) |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 3.75pF @ 1MHz |
| Mounting Type | Surface Mount |

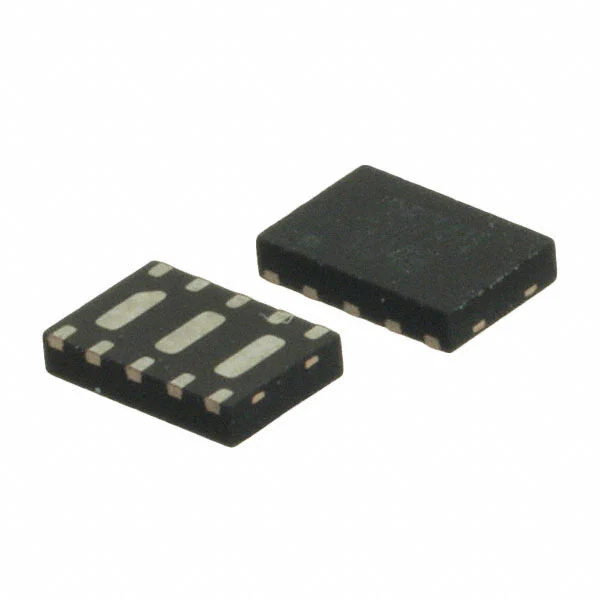

| Package / Case | 10-UDFN Exposed Pad |
| Supplier Device Package | SLP3020N10 |
| Base Product Number | RCLAMP2574 |
- With a 2.5V voltage rating, this protection array is well-suited for applications where protection against ESD events is required in low-voltage circuits. It effectively clamps the voltage to a safe level, preventing damage to downstream components.
- The RCLAMP2574N.TCT features four channels, allowing it to provide comprehensive protection for multiple signal or data lines.
- This protection array is versatile and can be employed in various electronic systems, including but not limited to telecommunications, data communication, audio/video interfaces, and other applications where ESD protection is critical for reliable operation.
