| Manufacturer | onsemi |
| Manufacturer Standard Lead Time | 11 Weeks |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR), Cut Tape (CT) |
| Description | IC OPAMP GP 2 CIRCUIT 8SOIC |
| Product Status | Active |
| Number of Circuits | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | NCV33272 |
| Amplifier Type | General Purpose |
| Output Type | – |
| Slew Rate | 10V/µs |
| Current – Input Bias | 300 nA |
| Voltage – Input Offset | 100 µV |
| Current – Supply | 2.15mA (x2 Channels) |
| Current – Output / Channel | 37 mA |
| Voltage – Supply Span (Min) | 3 V |
| Voltage – Supply Span (Max) | 36 V |
| Gain Bandwidth Product | 24 MHz |

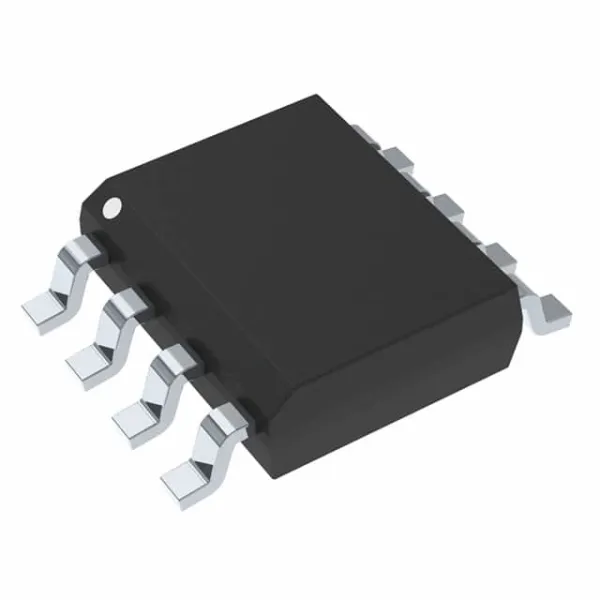

The NCV33272ADR2G is a General-Purpose Amplifier with 2 circuits, and it is packaged in an 8-SOIC (Small Outline Integrated Circuit) package.
This amplifier is designed for general-purpose applications, offering flexibility for various circuit configurations and uses. The 8-SOIC package provides a standardized form factor for easy integration into electronic circuits.
