| Product: | RS-232 Transceivers |
| Product Type: | RS-232 Interface IC |
| Manufacturer: | Analog Devices / Maxim Integrated |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-20 |
| Function: | Transceiver |
| Data Rate: | 250 kb/s |
| Number of Drivers: | 2 Driver |
| Number of Receivers: | 2 Receiver |
| Shutdown: | With Shutdown |
| Supply Type: | Single Supply |
| Supply Voltage – Max: | 3.6 V |
| Supply Voltage – Min: | 3 V |
| Operating Supply Current: | 1 mA |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Height: | 2.35 mm |
| Length: | 13 mm |
| Width: | 7.6 mm |
| Operating Supply Voltage: | 3.3 V |
| Propagation Delay Time: | 0.25 us |

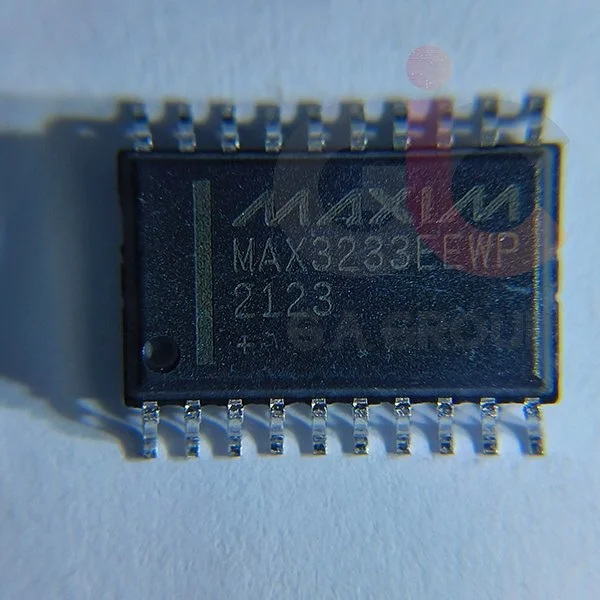

The MAX3233EEWP+T is a product by Maxim Integrated (now part of Analog Devices). It is an RS-232 transceiver designed for use in communication interfaces. This IC (Integrated Circuit) provides a solution for converting signals between RS-232 and TTL/CMOS logic levels, which is essential in various serial communication applications.
This IC is typically used in portable devices, communication equipment, and any application requiring RS-232 serial communication.
