| Product Type: | RF Mixer |
| Manufacturer: | Analog Devices |
| OIP3 – Third Order Intercept: | 20.2 dBm |
| Operating Supply Current: | 115 mA |
| Operating Supply Voltage: | 3.3 V |
| P1dB – Compression Point: | 14.3 dBm |
| RF Frequency: | 2 GHz to 14 GHz |
| Conversion Loss – Max: | 8 dB |
| NF – Noise Figure: | 7.9 dB |
| LO Frequency: | 1 GHz to 12 GHz |
| IF Frequency: | 500 MHz to 6 GHz |
| Operating Temperature: | – 40 ℃ to + 105 ℃ |
| Development Kit: | DC2310A |
| Mounting Style: | SMD/SMT |
| Package / Case: | QFN-12 |
| Packaging: | Reel |

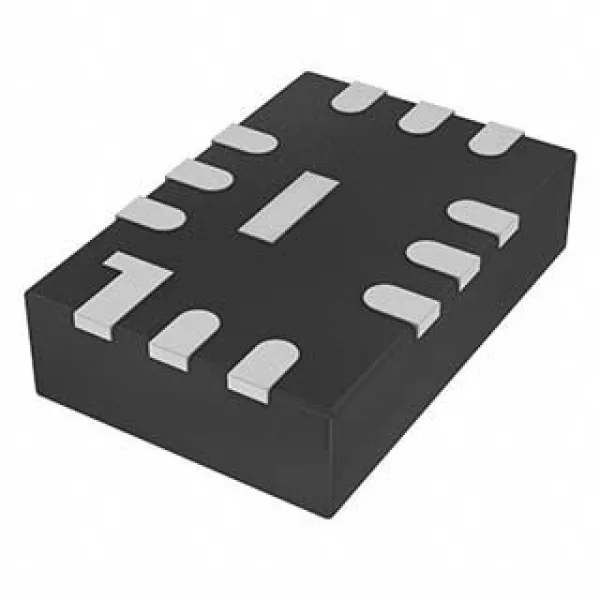

The LTC5549IUDB#TRPBF is a high-performance, wideband RF mixer from Analog Devices, optimized for upconversion or downconversion applications. This active mixer offers exceptional linearity and low noise, making it ideal for communication systems.
