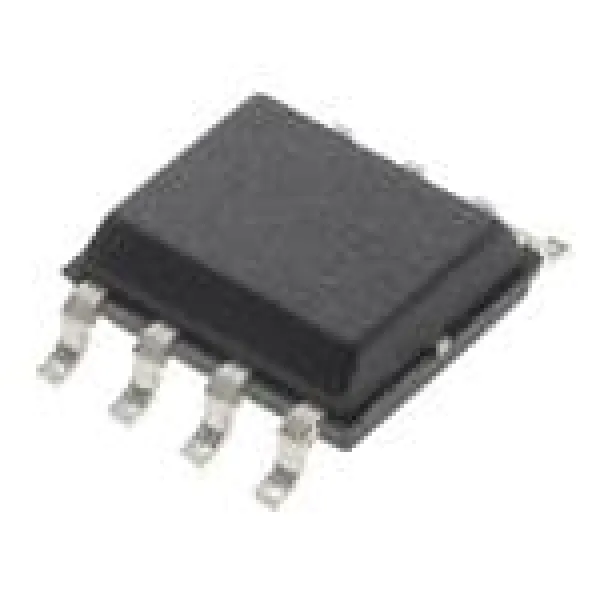

IRF7317TRPBF

Manufacturer	Infineon
Brand	Infineon Technologies
Product Type	MOSFET
Factory Pack Quantity	4000
Technology	Si
Mounting Style	SMD/SMT
Package / Case	SOIC-8
Transistor Polarity	N-Channel, P-Channel
Number of Channels	2 Channel
Vds – Drain-Source Breakdown Voltage	20 V
Id – Continuous Drain Current	6.6 A
Rds On – Drain-Source Resistance	29 mOhms
Vgs – Gate-Source Voltage	– 12 V, + 12 V
Vgs th – Gate-Source Threshold Voltage	700 mV
Qg – Gate Charge	18 nC
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 150 C
Pd – Power Dissipation	2 W
Channel Mode	Enhancement
Configuration	Dual
Height	1.75 mm
Length	4.9 mm
Transistor Type	1 N-Channel, 1 P-Channel
Width	3.9 mm
Unit Weight	0.019048 oz
