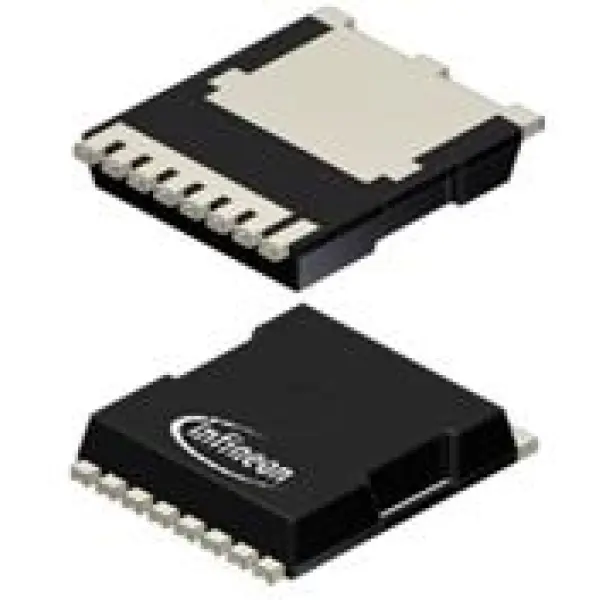

IPLU300N04S4-R8

Manufacturer	Infineon
Technology	Si
Mounting Style	SMD/SMT
Package / Case	H-PSOF-8
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	40 V
Id – Continuous Drain Current	300 A
Rds On – Drain-Source Resistance	770 uOhms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage	2 V
Qg – Gate Charge	221 nC
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 175 C
Pd – Power Dissipation	429 W
Channel Mode	Enhancement
Qualification	AEC-Q101
Series	XPLU300N04
Packaging	Reel
Configuration	Single
Fall Time	61 ns
Height	2.3 mm
Length	10.37 mm
Product Type	MOSFET
Rise Time	22 ns
Factory Pack Quantity	2000
Subcategory	MOSFETs
Transistor Type	1 N-Channel
Typical Turn-Off Delay Time	68 ns
Typical Turn-On Delay Time	50 ns
Width	9.9 mm
Part # Aliases	SP001063102 IPLU300N04S4R8XTMA1
Unit Weight	0.002293 oz
