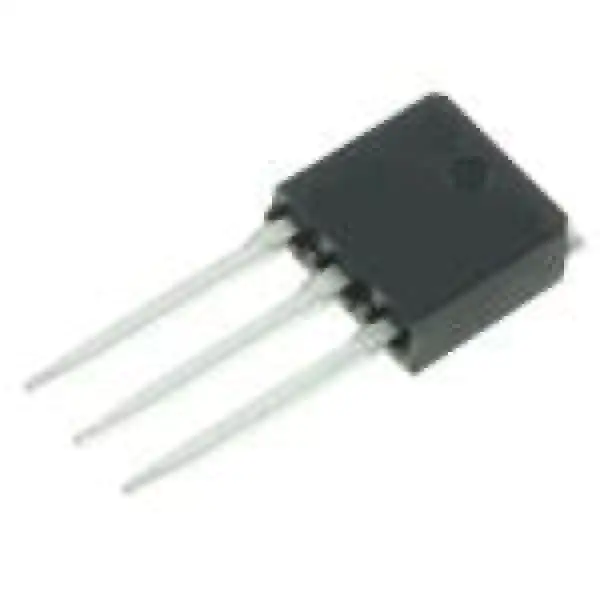

IPI80N04S4-04

Manufacturer	Infineon
Mounting Style	Through Hole
Package / Case	TO-262-3
Configuration	Single
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 175 C
Qualification	AEC-Q101
Packaging	Tube
Pd – Power Dissipation	71 W
Product Type	MOSFET
Factory Pack Quantity	500
Subcategory	MOSFETs
Technology	Si
Tradename	OptiMOS
Part # Aliases	SP000646190 IPI8N4S44XK IPI80N04S404AKSA1
Unit Weight	0.084199 oz
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	40 V
Id – Continuous Drain Current	80 A
Rds On – Drain-Source Resistance	4.2 mOhms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage	3 V
Qg – Gate Charge	43 nC
Channel Mode	Enhancement
