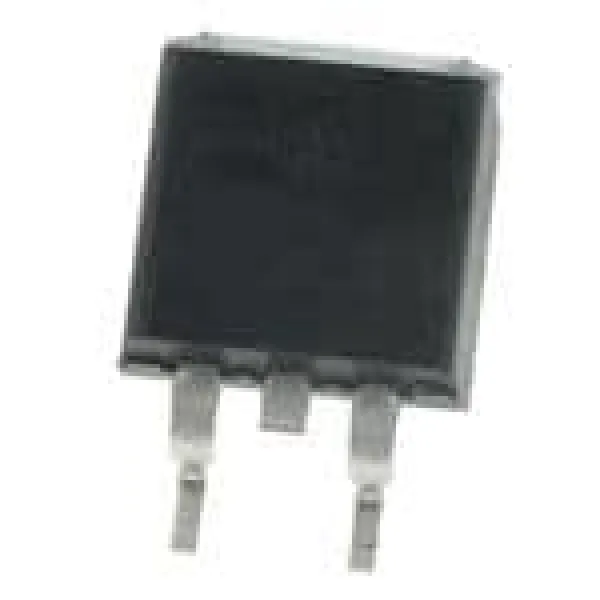

IPB120N06S4-02

Manufacturer	Infineon
Mounting Style	SMD/SMT
Package / Case	TO-263-3
Configuration	Single
Rise Time	5 ns
Fall Time	10 ns
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 175 C
Packaging	Reel
Pd – Power Dissipation	188 W
Product Type	MOSFET
Factory Pack Quantity	1000
Technology	Si
Tradename	OptiMOS
Part # Aliases	IPB12N6S42XT SP000415560 IPB120N06S402ATMA1
Unit Weight	0.139332 oz
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	60 V
Id – Continuous Drain Current	120 A
Rds On – Drain-Source Resistance	2.4 mOhms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Qg – Gate Charge	150 nC
