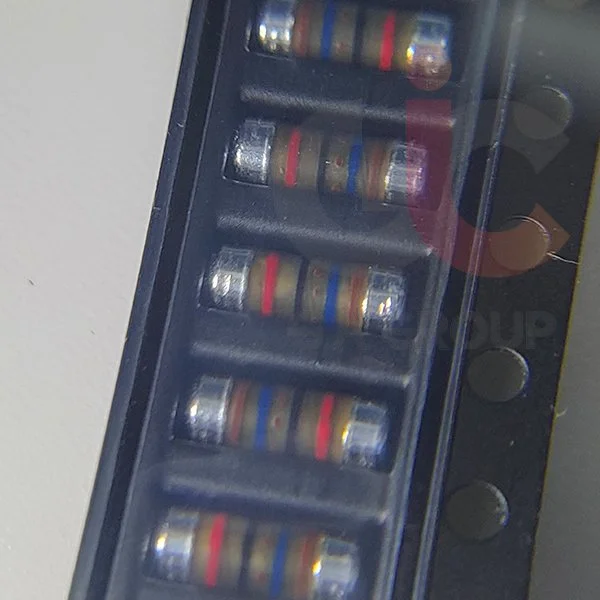

| Product: | Carbon Film MELF Resistor |
| Product Type: | MELF Resistors |
| Type: | High Pulse Load MELF Resistors |
| Manufacturer: | Vishay |
| Features: | Intrinsic Sulfur Resistance |
| Mounting Style: | PCB Mount |
| Resistance: | 16 Ohms |
| Power Rating: | 1 W |
| Tolerance: | 2 % |
| Operating Temperature Range | – 55 ℃ to + 155 ℃ |
| Voltage Rating: | 500 V |
| Case Code – mm: | MELF 0207 |
| Application: | Automotive, Industrial, Medical, Telecommunication |
Features:
- MELF Package: Offers excellent stability, precision, and reliability with a cylindrical shape that is ideal for automated placement in surface-mount applications.
- High Stability: Suitable for applications that require stable performance over a wide temperature range and extended periods.
- High Surge Capability: MELF resistors typically have a higher surge capability compared to standard chip resistors.
- Low Noise and Low Inductance: These characteristics make them suitable for high-frequency applications and precision circuits.
