| Product Type: | BJTs – Bipolar Transistors |
| Manufacturer: | Renesas Electronics |
| Mounting Style: | Through Hole |
| Transistor Polarity: | NPN |
| Configuration: | Penta |
| Maximum DC Collector Current: | 50 mA |
| Collector- Emitter Voltage VCEO Max: | 15 V |
| Collector- Base Voltage VCBO: | 20 V |
| Emitter- Base Voltage VEBO: | 5 V |
| Pd – Power Dissipation: | 300 mW |
| Gain Bandwidth Product fT: | 550 MHz |
| Minimum Operating Temperature: | – 55 ℃ |
| Maximum Operating Temperature: | + 125 ℃ |
| DC Collector/Base Gain hfe Min: | 40 |
| Technology: | Si |
| Package / Case: | 14-pin Dual In-line Package (DIP) |

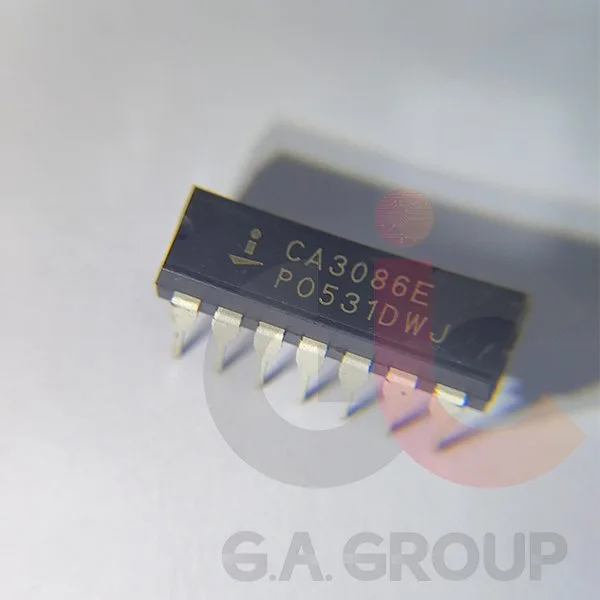

The CA3086 is an integrated circuit consisting of five NPN bipolar junction transistors (BJTs) in a single package. This IC is widely used in analog circuits, especially where matched transistors are required for current mirrors, differential amplifiers, or other applications needing closely matched transistor pairs.
Applications:
– Analog Signal Processing: Useful in creating differential amplifiers, gain stages, and oscillators.
– Current Mirrors: For circuits where precise current matching is required.
– Switching Circuits: Can be used in low-power switching applications.
– Temperature Compensation: Matched transistors allow for stable operation across a range of temperatures.
