BSC0924NDI

Manufacturer	Infineon
Product Type	MOSFET
Factory Pack Quantity	5000
Tradename	OptiMOS
Technology	Si
Mounting Style	SMD/SMT

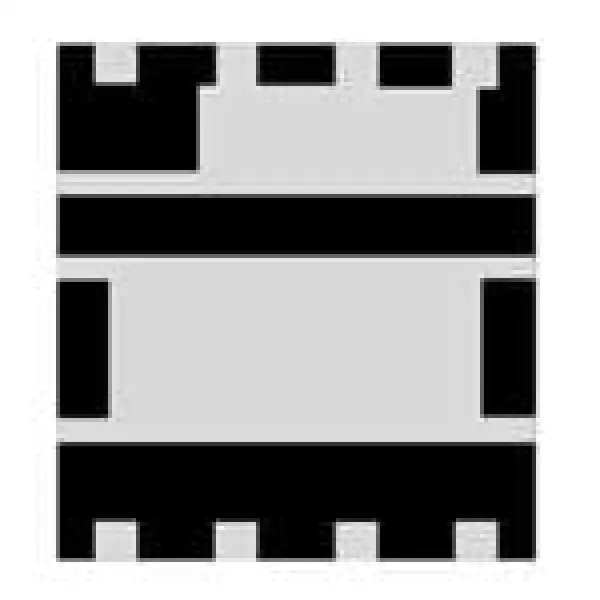

Package / Case	TISON-8
Transistor Polarity	N-Channel
Number of Channels	2 Channel
Vds – Drain-Source Breakdown Voltage	30 V
Id – Continuous Drain Current	40 A
Rds On – Drain-Source Resistance	3.8 mOhms, 2.8 mOhms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage	1.2 V
Qg – Gate Charge	10 nC, 12.8 nC
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 150 C
Pd – Power Dissipation	2.5 W
Channel Mode	Enhancement
Configuration	Dual
Fall Time	3 ns, 2.2 ns
Height	1.27 mm
Length	5.9 mm
Rise Time	3.8 ns, 2.8 ns
Transistor Type	2 N-Channel
Typical Turn-Off Delay Time	17 ns, 15 ns
Typical Turn-On Delay Time	4.7 ns, 3.3 ns
Width	5.15 mm
Unit Weight	0.003402 oz
