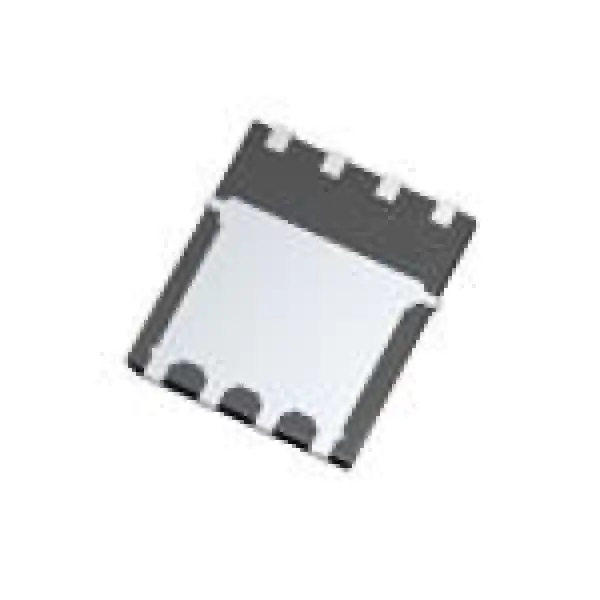

BSC040N10NS5 Infineon Technologies N-Channel TDSON-8

Manufacturer	Infineon
Series	OptiMOS 5
Packaging	Reel
Brand	Infineon Technologies
Product Type	MOSFET
Factory Pack Quantity	5000
Tradename	OptiMOS
Technology	Si
Mounting Style	SMD/SMT
Package / Case	TDSON-8
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	100 V
Id – Continuous Drain Current	100 A
Rds On – Drain-Source Resistance	4 mOhms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage	2.2 V
Qg – Gate Charge	58 nC
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 150 C
Pd – Power Dissipation	139 W
Channel Mode	Enhancement
Configuration	Single
Fall Time	10 ns
Height	1.27 mm
Length	5.9 mm
Rise Time	9 ns
Transistor Type	1 N-Channel
Typical Turn-Off Delay Time	32 ns
Typical Turn-On Delay Time	13 ns
Width	5.15 mm
Part # Aliases	SP001295030 BSC040N10NS5ATMA1
Unit Weight	0.003683 oz
