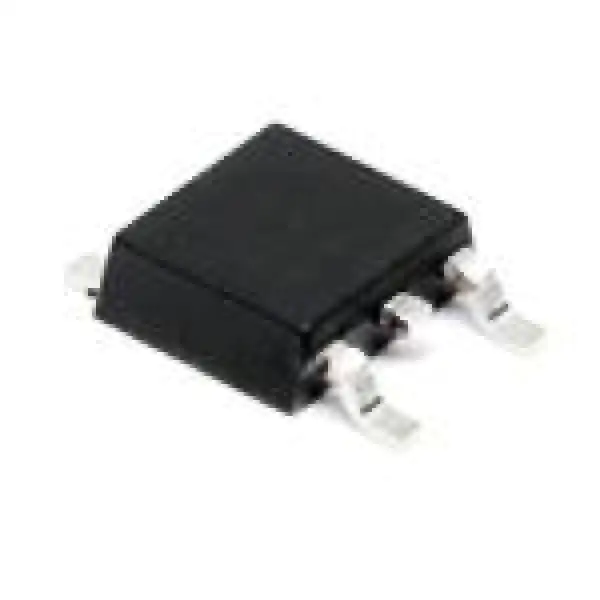

AUIRFR4615TRL Infineon Technologies MOSFET

Manufacturer	Infineon
Technology	Si
Mounting Style	SMD/SMT
Package / Case	TO-252-3
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	150 V
Id – Continuous Drain Current	33 A
Rds On – Drain-Source Resistance	42 mOhms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage	5 V
Qg – Gate Charge	26 nC
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 175 C
Pd – Power Dissipation	144 W
Channel Mode	Enhancement
Packaging	MouseReel
Brand	Infineon Technologies
Configuration	Single
Fall Time	20 ns
Forward Transconductance – Min	35 S
Height	2.3 mm
Length	6.5 mm
Product Type	MOSFET
Rise Time	35 ns
Factory Pack Quantity	3000
Subcategory	MOSFETs
Transistor Type	1 N-Channel
Typical Turn-Off Delay Time	25 ns
Typical Turn-On Delay Time	15 ns
Width	6.22 mm
Unit Weight	0.011640 oz

AUIRFR4615TRL
