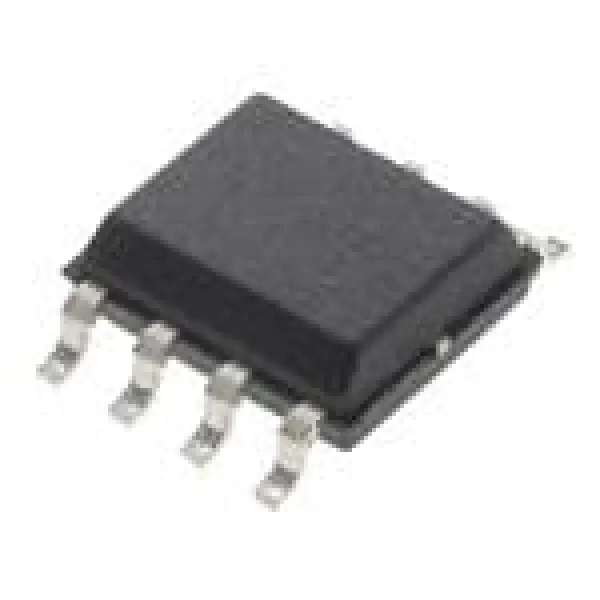

AUIRF7341QTR Infineon Technologies N Channel MOSFET

Manufacturer	Infineon
Technology	Si
Mounting Style	SMD/SMT
Package / Case	SOIC-8
Transistor Polarity	N-Channel
Number of Channels	2 Channel
Vds – Drain-Source Breakdown Voltage	55 V
Id – Continuous Drain Current	5.1 A
Rds On – Drain-Source Resistance	65 mOhms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage	3 V
Qg – Gate Charge	29 nC
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 175 C
Pd – Power Dissipation	2.4 W
Channel Mode	Enhancement
Packaging	MouseReel
Brand	Infineon Technologies
Configuration	Dual
Fall Time	12.5 ns
Forward Transconductance – Min	10.4 S
Height	1.75 mm
Length	4.9 mm
Product Type	MOSFET
Rise Time	7.7 ns
Factory Pack Quantity	4000
Subcategory	MOSFETs
Transistor Type	2 N-Channel
Typical Turn-Off Delay Time	31 ns
Typical Turn-On Delay Time	9.2 ns
Width	3.9 mm
Unit Weight	0.019048 oz

AUIRF7341QTR
