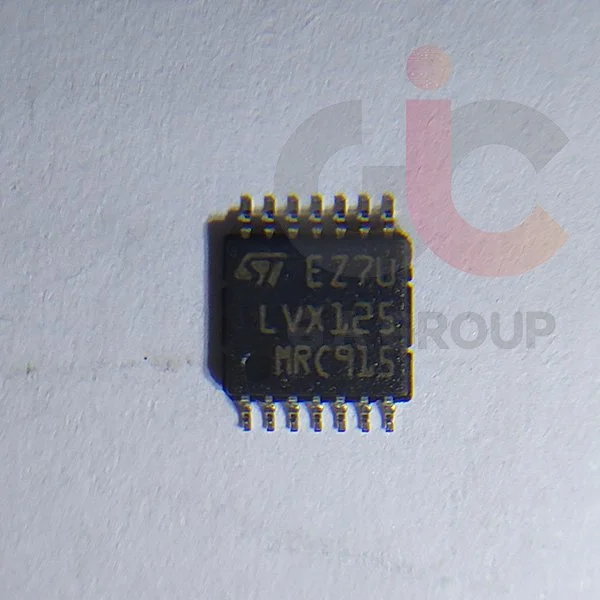

74LVX125TTR with 3 Outputs 4 Input by STMicroelectronics

Manufacturer:	STMicroelectronics
Polarity:	Non-Inverting
Package / Case:	TSSOP-14
High Level Output Current:	– 4 mA
Low Level Output Current:	4 mA
Quiescent Current:	2 uA
Supply Voltage – Min:	2 V
Supply Voltage – Max:	3.6 V
Minimum Operating Temperature:	– 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Logic Family:	LVX
Number of Input Lines:	4 Input
Number of Output Lines:	3 Output
Packaging:	Reel
Packaging:	Cut Tape
Function:	Buffer/Line Driver
Height:	1 mm
Input Signal Type:	Single-Ended
Length:	5 mm
Logic Type:	CMOS
Moisture Sensitive:	Yes
Number of Channels:	4 Channel
Operating Supply Voltage:	2 V to 3.6 V
Output Type:	3-State
Product Type:	Buffers & Line Drivers
Propagation Delay Time:	13.6 ns at 2.7 V, 9.7 ns at 3.3 V
Supply Current – Max:	2 uA
Technology:	CMOS

74LVX125TTR
