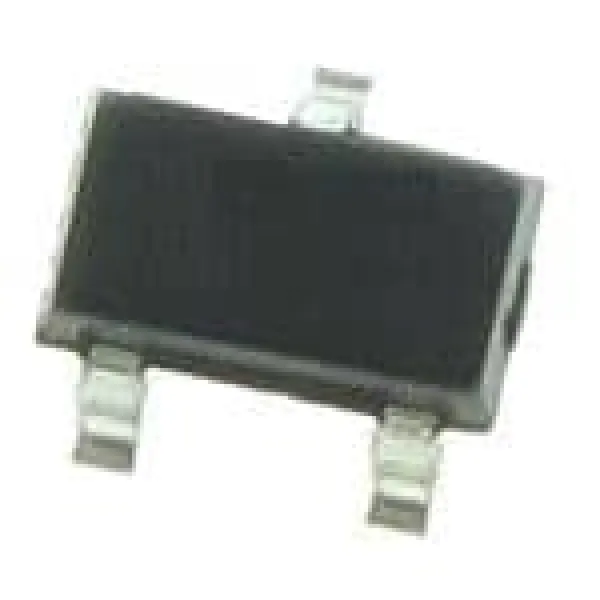

2N7002K onsemi N-Channel MOSFET

Manufacturer	onsemi
Technology	Si
Mounting Style	SMD/SMT
Package / Case	SOT-23-3
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	60 V
Id – Continuous Drain Current	300 mA
Rds On – Drain-Source Resistance	2 Ohms
Vgs – Gate-Source Voltage	– 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage	1 V
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 150 C
Pd – Power Dissipation	350 mW
Channel Mode	Enhancement
Series	2N7002K
Brand	onsemi / Fairchild
Configuration	Single
Height	1.2 mm
Length	2.9 mm
Product Type	MOSFET
Factory Pack Quantity	3000
Subcategory	MOSFETs
Transistor Type	1 N-Channel
Typical Turn-Off Delay Time	30 ns
Typical Turn-On Delay Time	5 ns
Width	1.3 mm
Unit Weight	0.000282 oz
Product	MOSFET Small Signal
